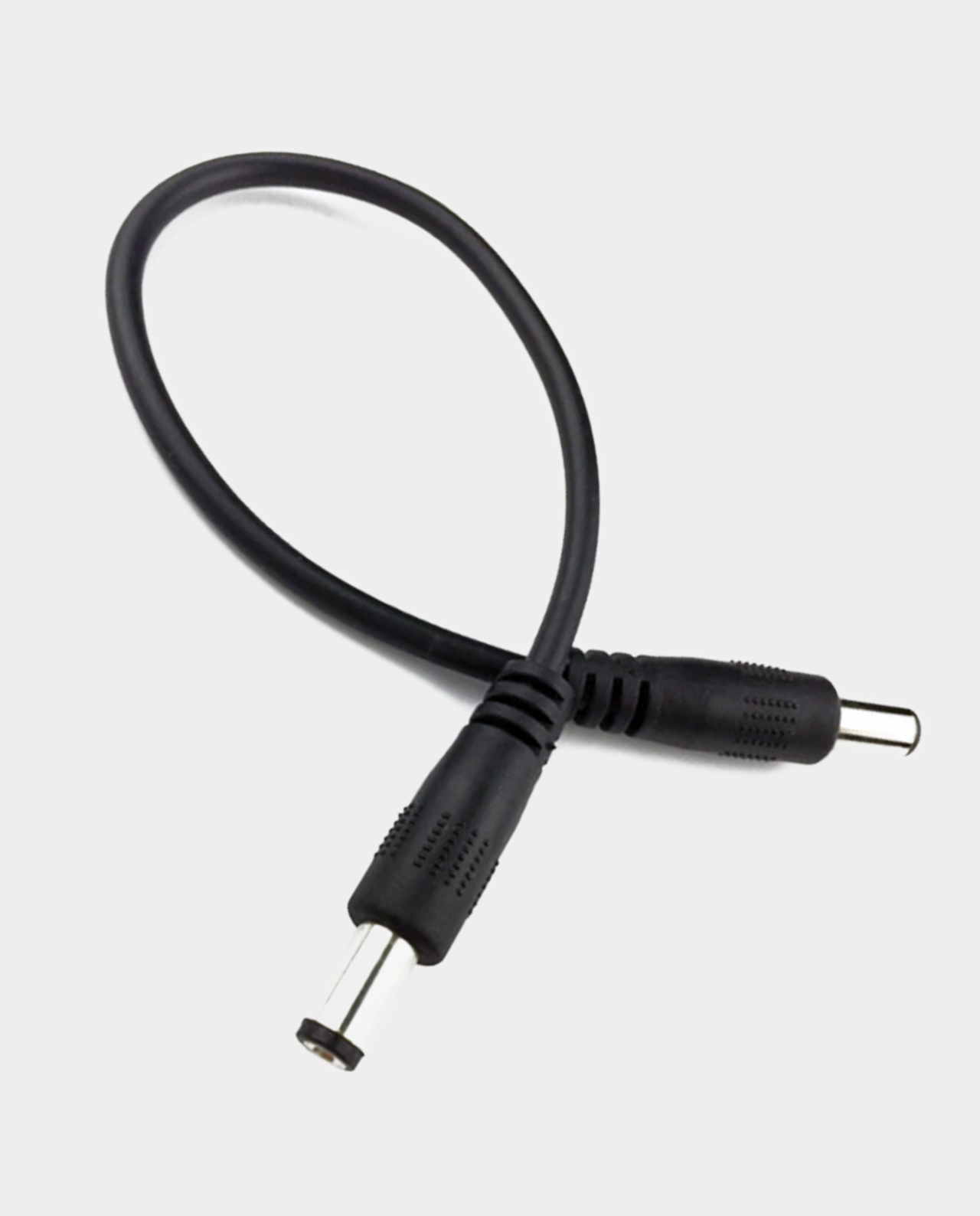

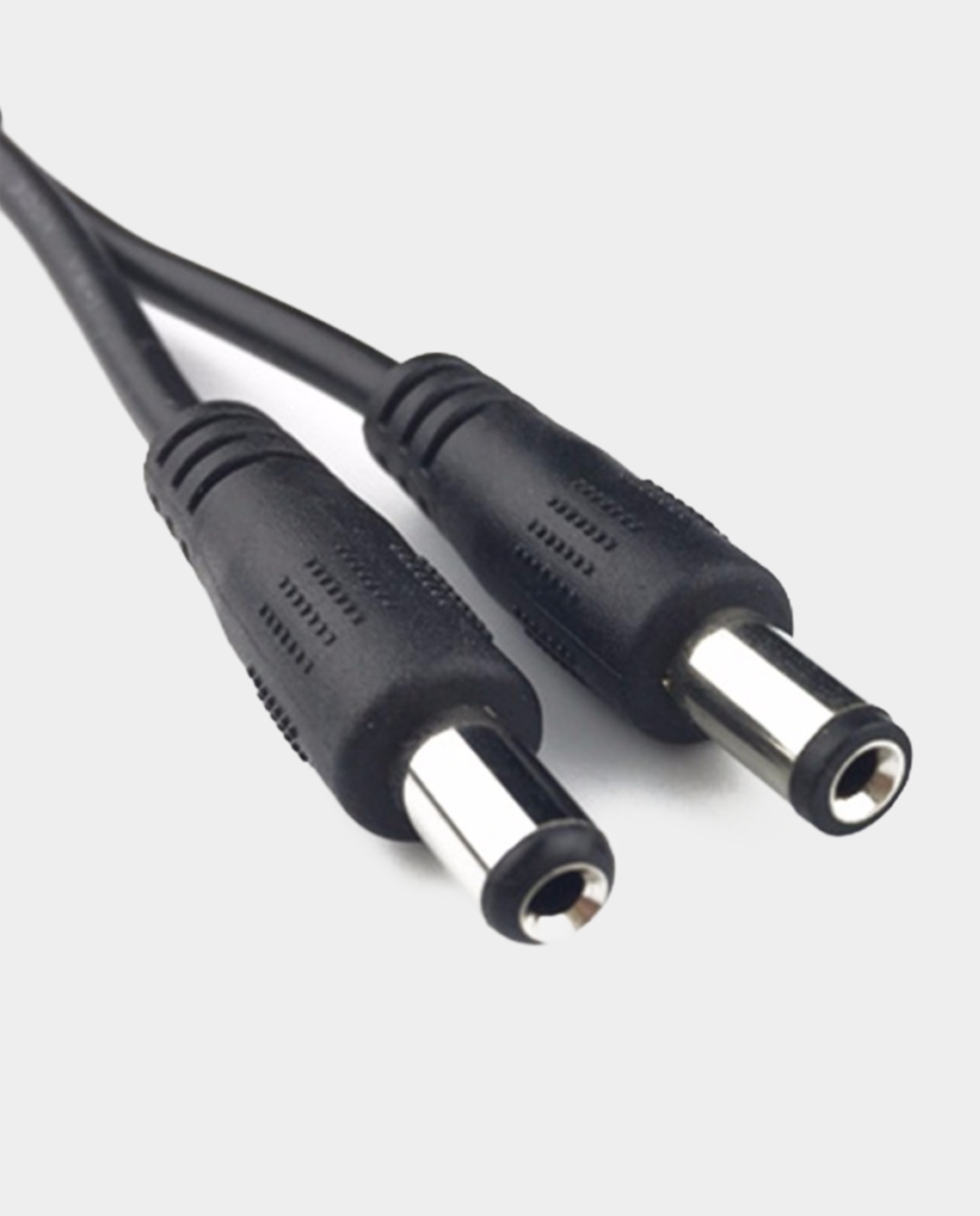

A male DC jack to male DC jack jumper cable, this is perfect for use with a MiSTer Digital IO board allowing for powering of the USB Hub directly from the DE10-Nano.
If you are using the Digital I/O MiSTer addon board just connect your DE10-Nano power supply into the Digital IO boards DC power socket, then connect one end of the male jumper cable into the DE10-Nano boards DC power socket and the other male end into the USB Hub’s DC power socket. You can now control all the boards power via the on/off switch on the Digital IO board.
✅ Male To Male DC Power Plugs
✅ High Quality Connectors
| Option1 | Option1 |
|---|
Be the first to review “MiSTer Male to Male DC Jack Link Cable”
