MiSTer Fan and Heatsink

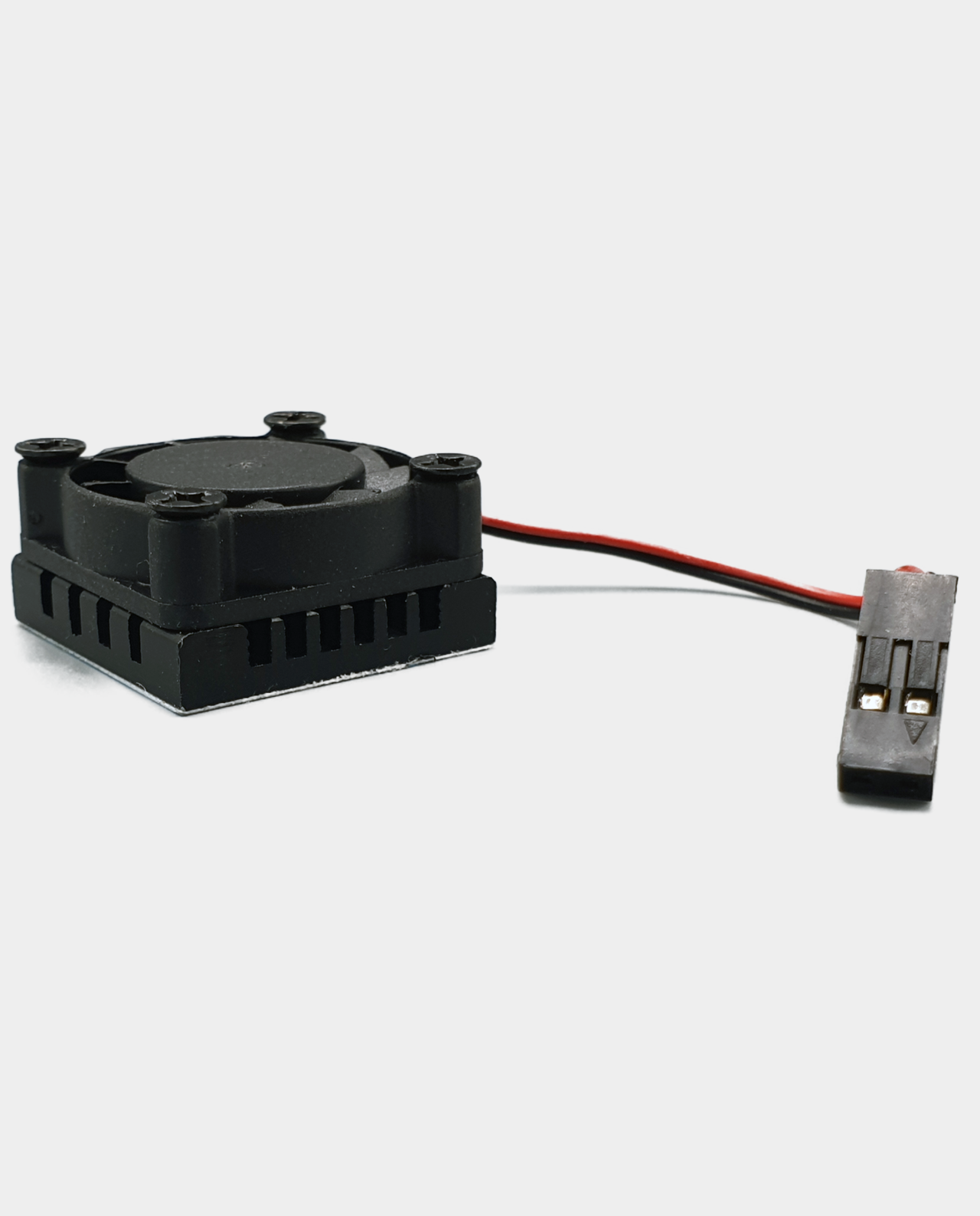

A minimal cost effective active cooling solution for your MiSTer build, if you do not require an IO Board but still wish to adequately cool the ARM / FPGA chip this is the perfect solution a super quiet fan, mounted on a solid aluminium heatsink.

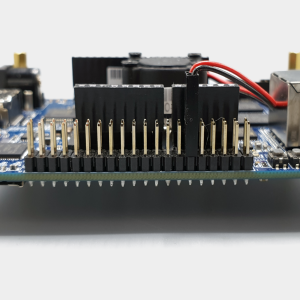

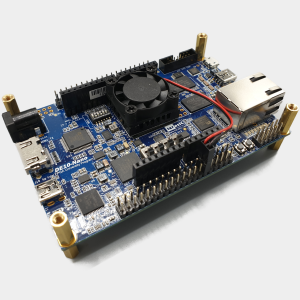

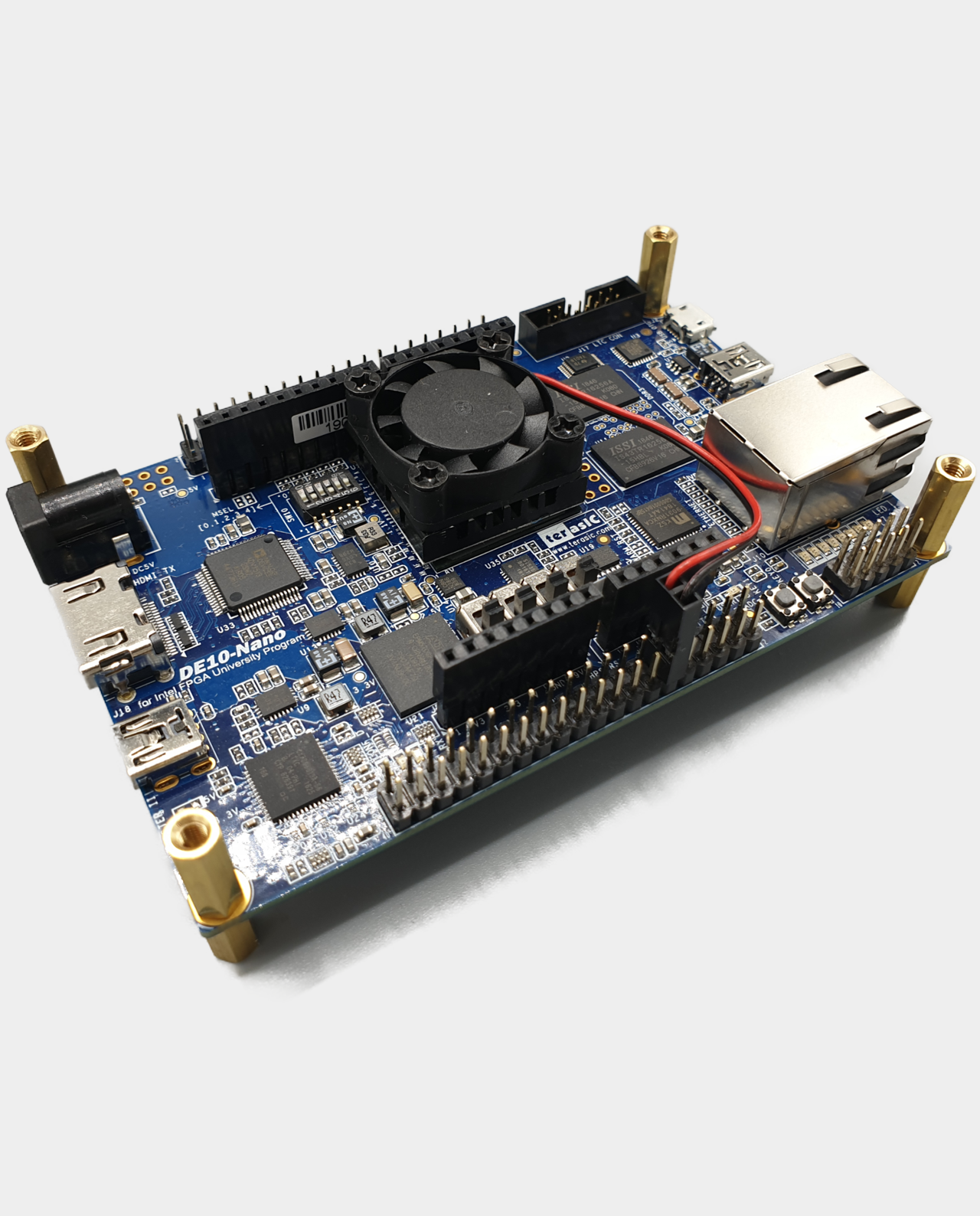

Installation is simple just remove the film from the thermal adhesive tape on the base of the heatsink, firmly push the heatsink down onto the Cyclone® V SoC, next connect the two pin Dupont connectors red wire to pin 11 (5V) and the black wire to pin 12 (GND) on either of the GPIO 0 or GPIO 1 headers.

View DE10-Nano GPIO Expansion Header Pin Arrangement

✅ Suitable For DE10-Nano FPGA Board
✅ Excellent Active FPGA Cooling
✅ Super Quiet Fan Only 22 dB(A)
✅ Solid Aluminium Heatsink

MiSTer Fan and Heatsink Compatibility:
✅ Terasic DE10-Nano
✅ Retro Remake MiSTer Pi
✅ QMTECH Cyclone V
