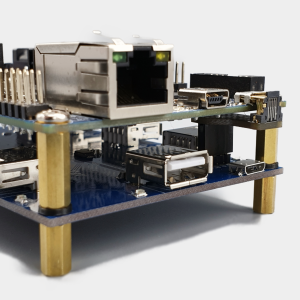

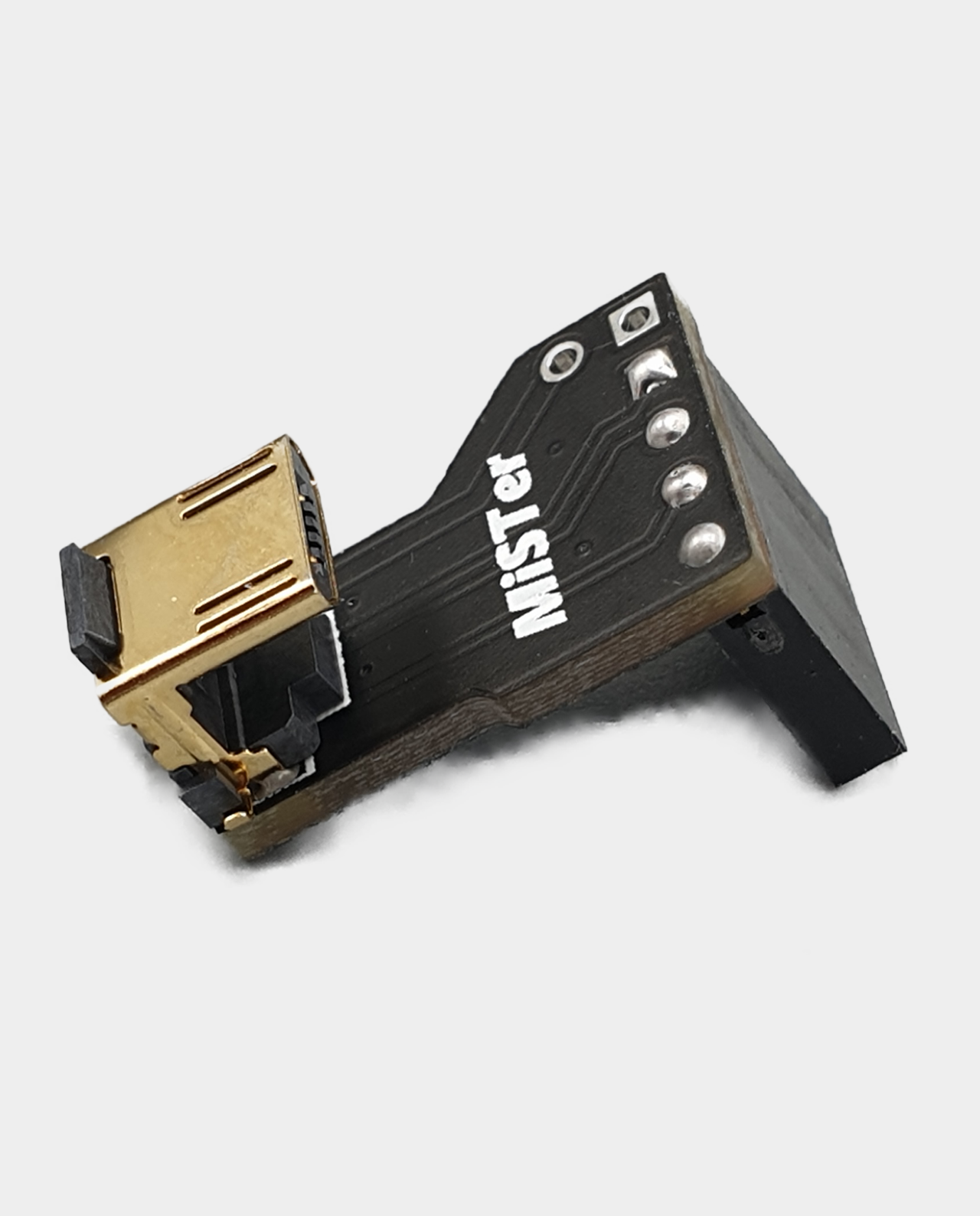

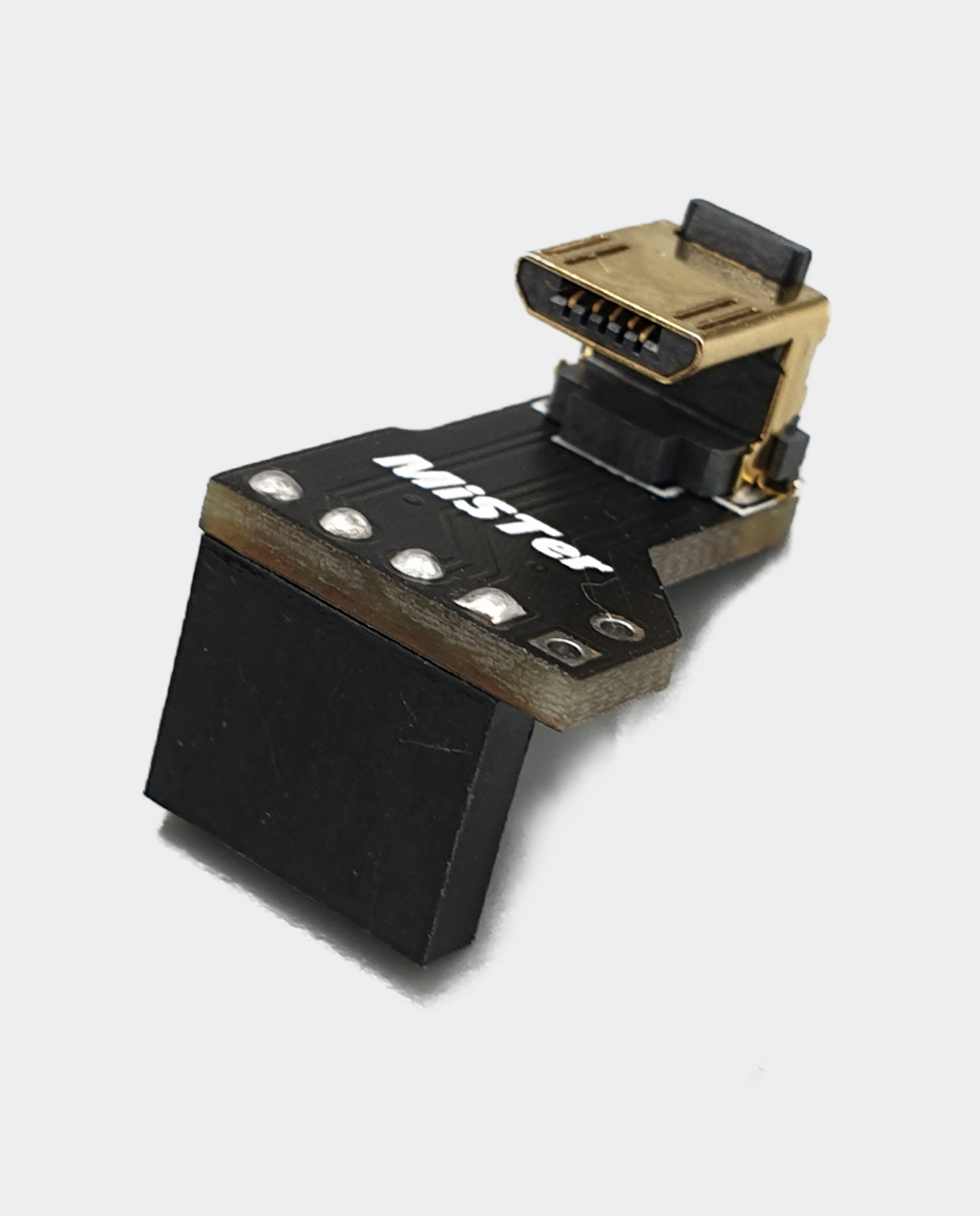

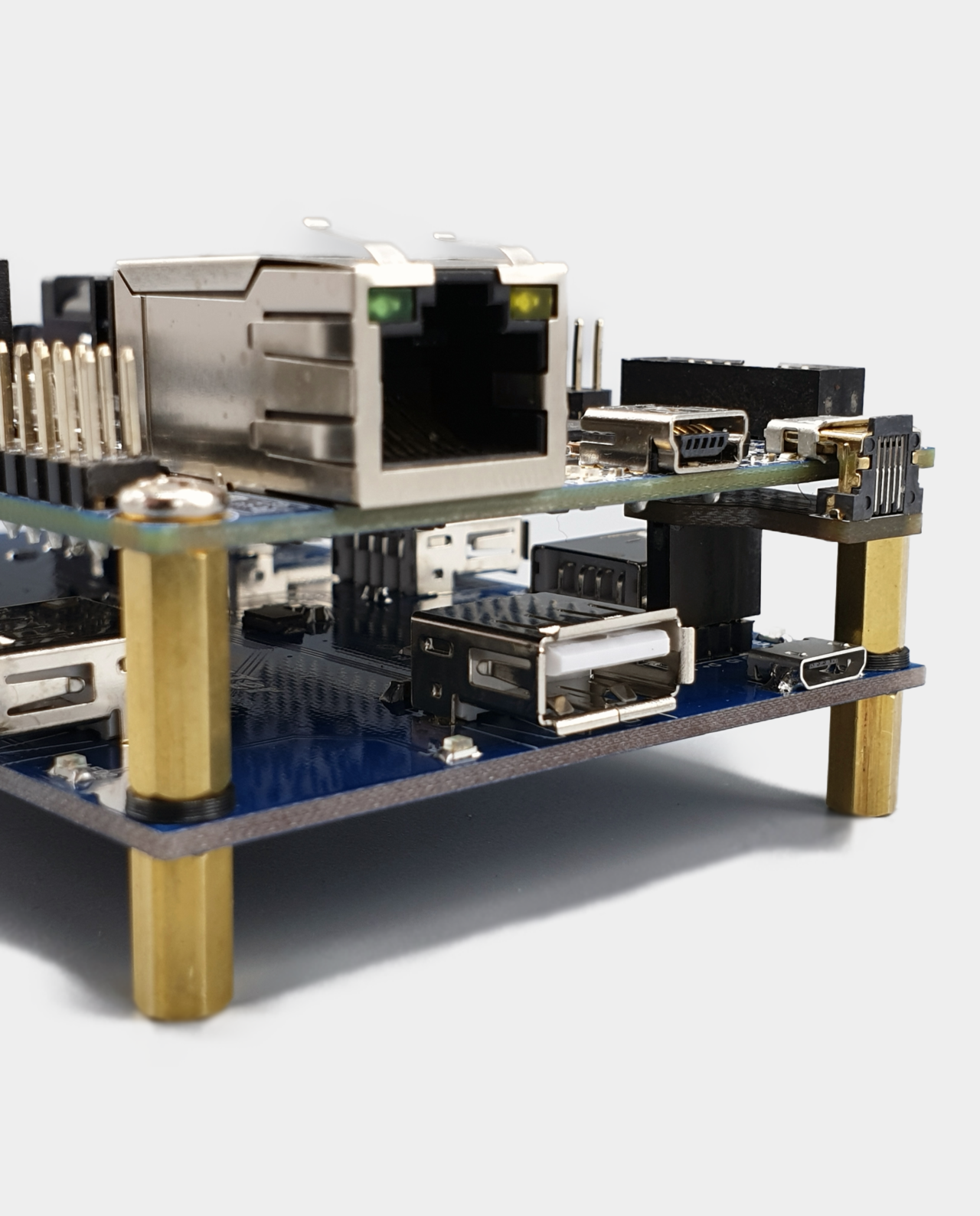

If you have a MiSTer USB Hub with a wired Micro USB cable attached, and wish to streamline your MiSTer setup this connector kit offers a neat low profile connection via a right angled gold plated Micro USB connector which plugs into the DE10 Nano boards Micro USB socket, the 4 pin socket plugs directly into a 4 pin header, this does need to be soldered into the USB hub board.

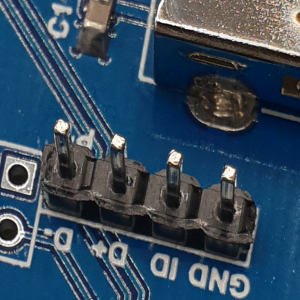

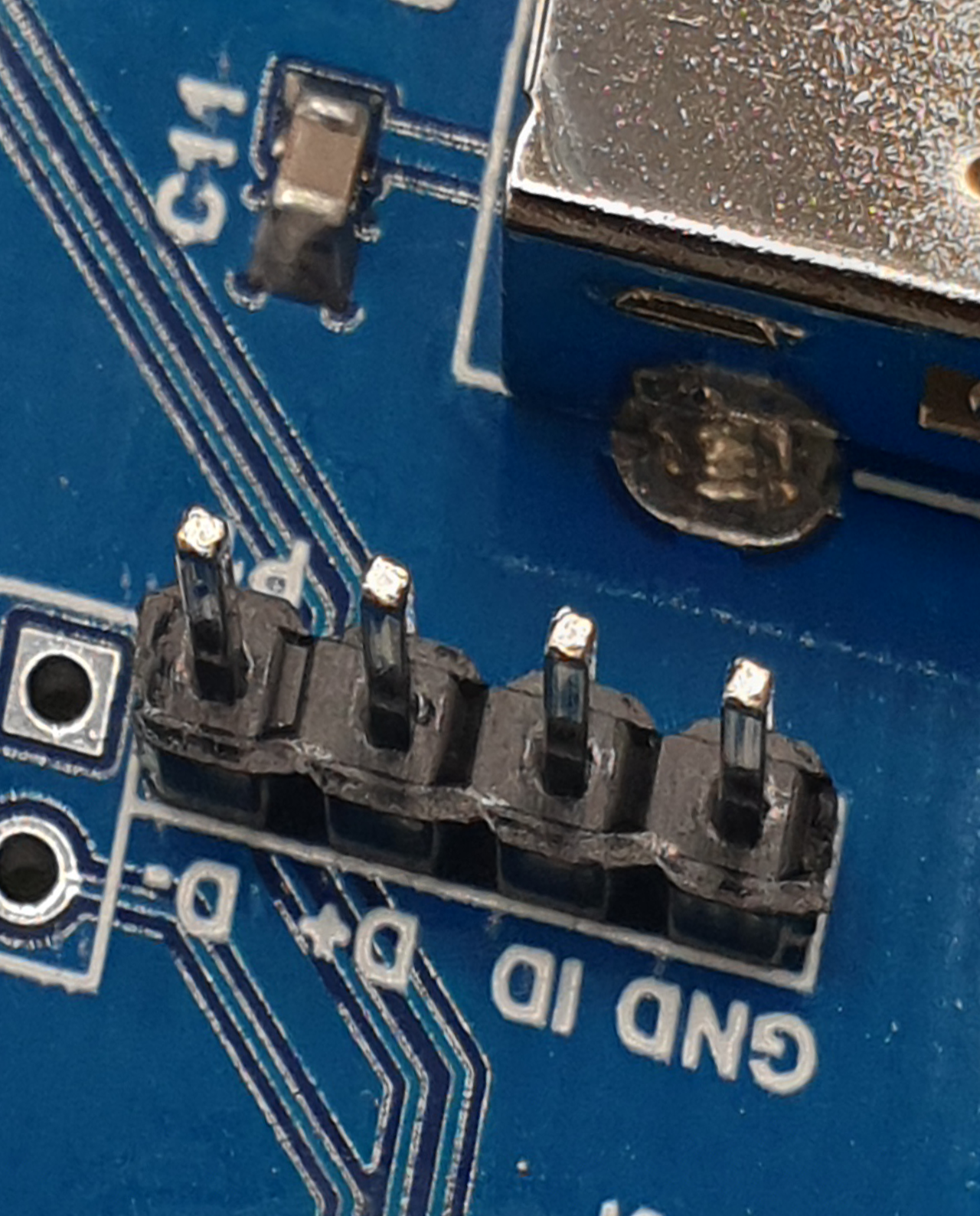

The installation procedure involves desoldering the Micro USB cables wires which are soldered into the P1 socket holes on the MiSTer USB Hub PCB. Once the wires have been removed a desolder pump may be required to clean out the P1 holes on the PCB so the 4 pin header can be soldered into place.
✅ Suitable For MiSTer FPGA USB Hub v1.2 & v2.1

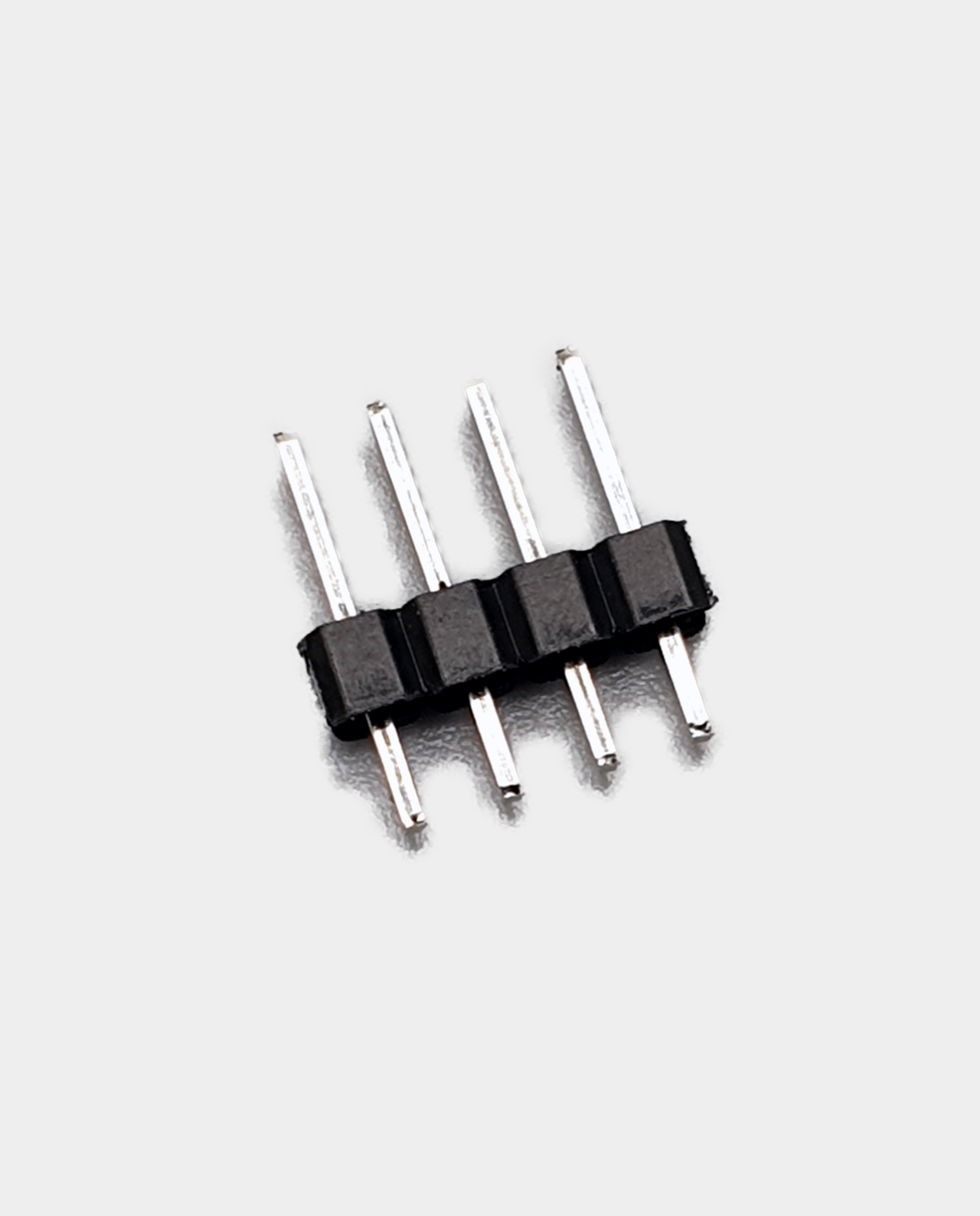

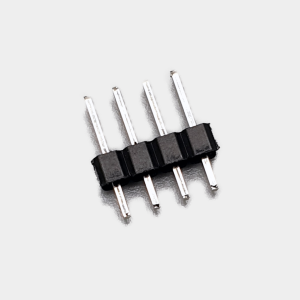

✅ Includes a 4 Pin Header
