USB Hub v2.1 For MiSTer
$28.99
Seven port USB hub v2.1 for MiSTer, connecting neatly to the DE10-Nano through the supplied Micro USB bracket connector so you can add multiple peripherals.
Related guides: SNAC vs BlisSTer vs USB controllers and our MiSTer FPGA beginner’s guide.
100 in stock

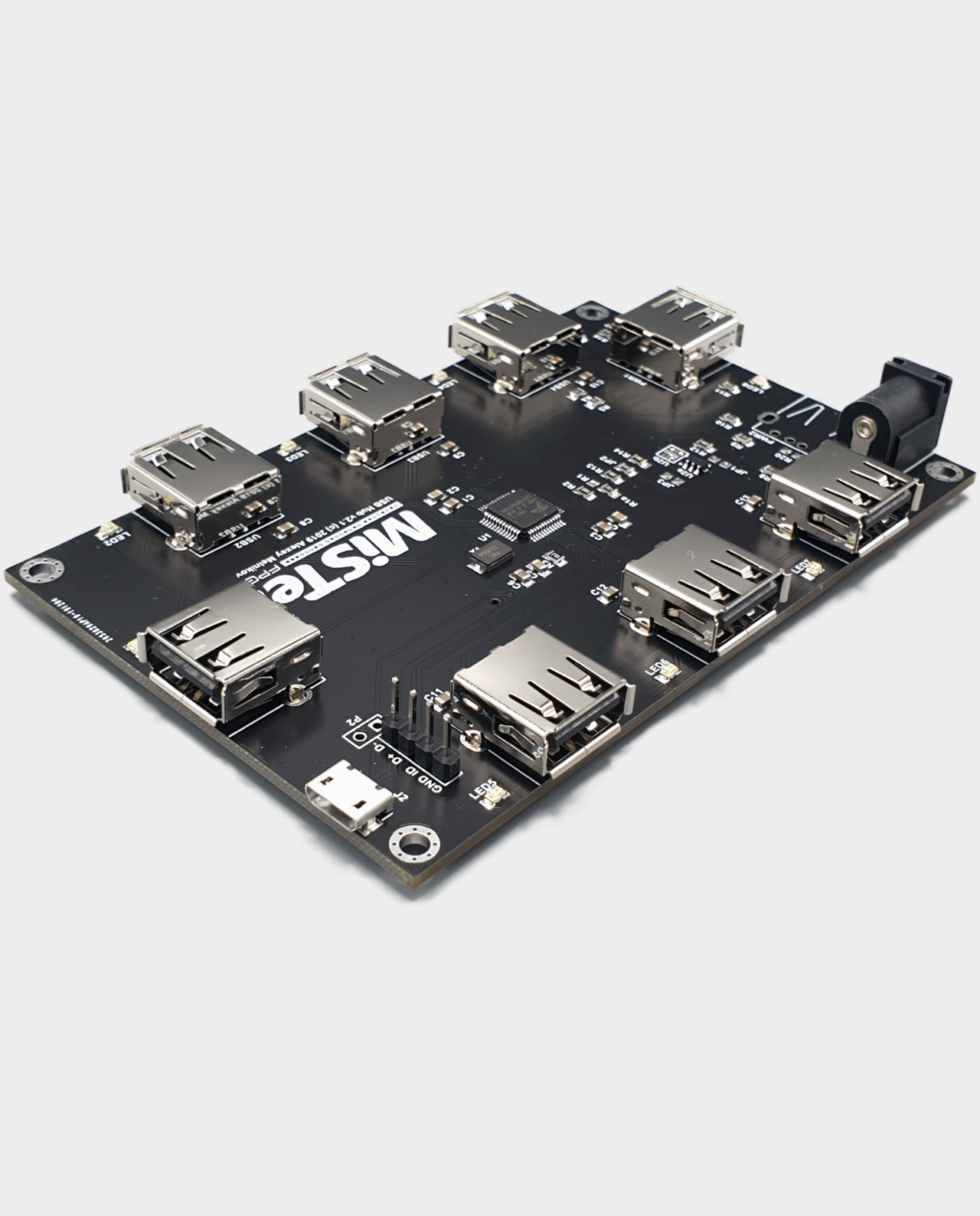

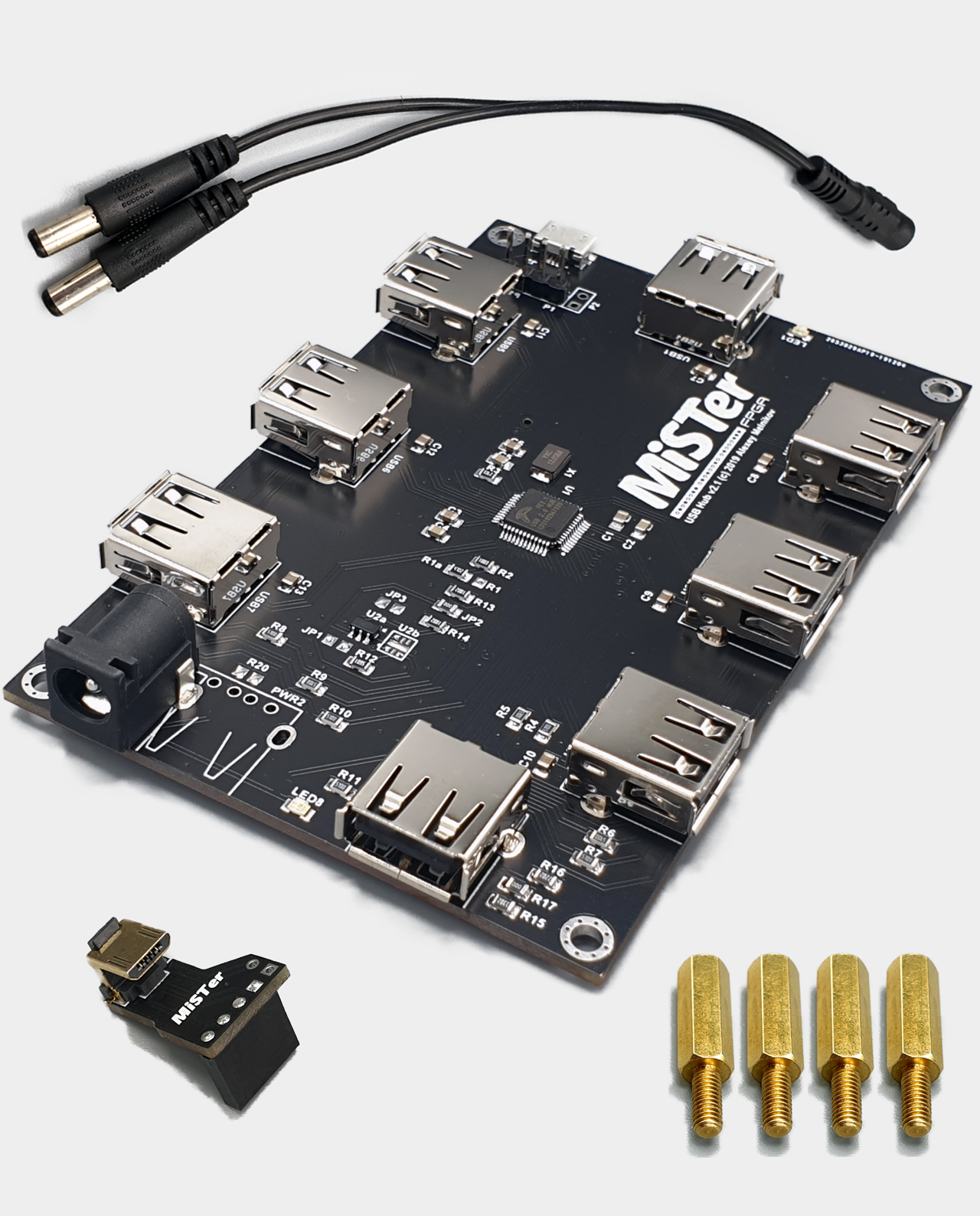

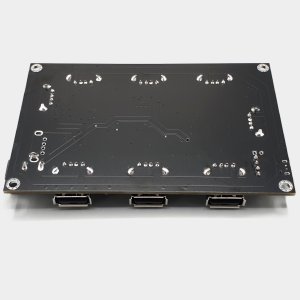

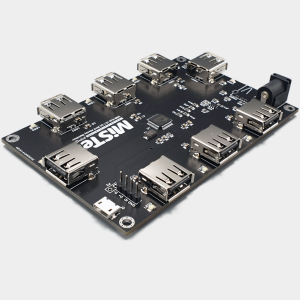

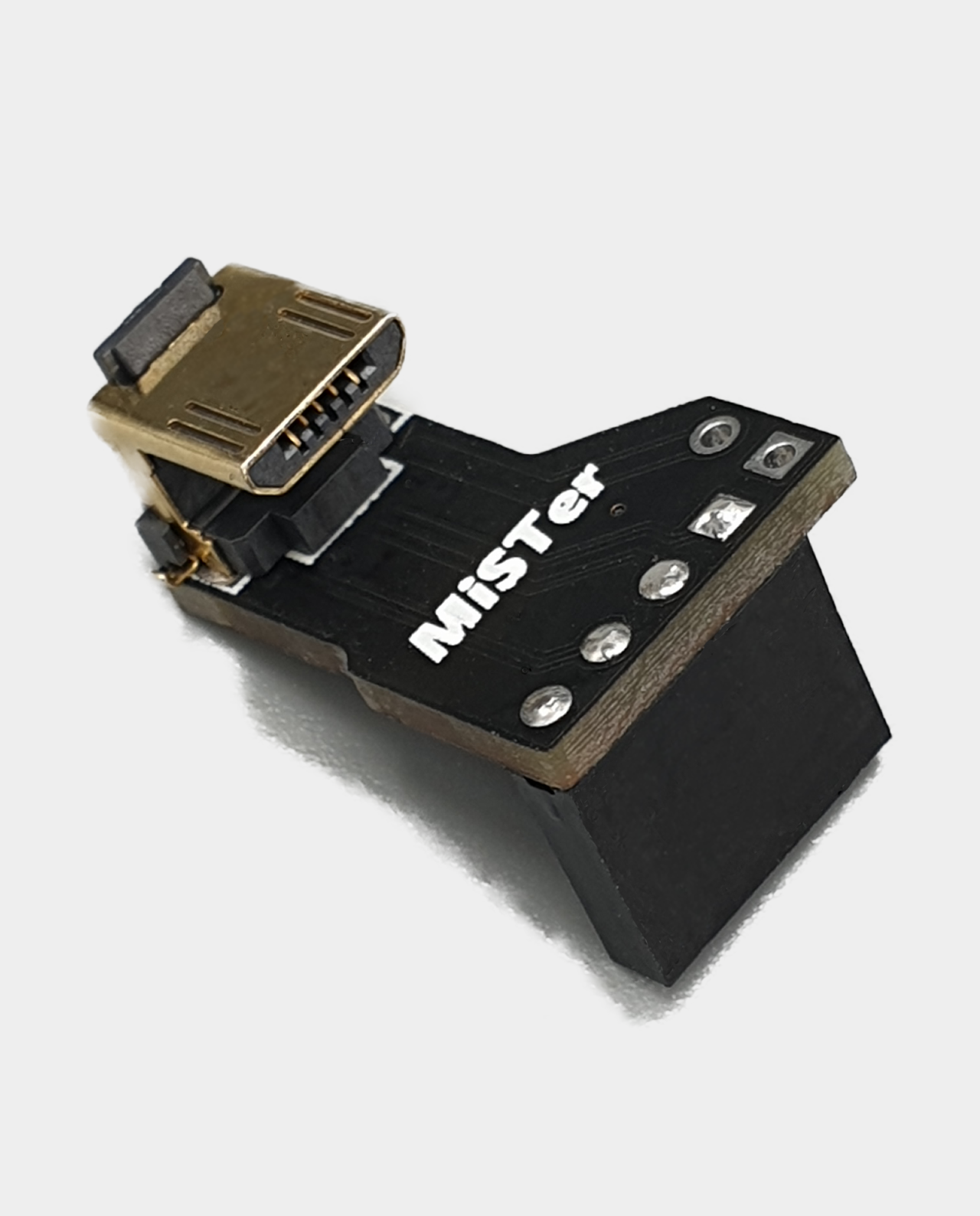

The USB Hub v2.1 board provides 7 USB ports for the MiSTer FPGA, if you need to connect multiple USB devices this is a very useful add-on board, offering a neat minimalist connection solution via the provided Micro USB Bracket Connector which connects directly into the header installed on the USB hub board and then via the right angled gold plated micro USB connector into the DE10 Nano board. A power splitter cable is also included along with four brass hex stand-offs.
The updated official MiSTer USB Hub v2.1 add-on board has the new VBUS control circuit installed, this additional protection IC is used for USB power cycling to help some USB devices reinitialise upon reset. Also present is an additional USB power only socket, this is marked PWR1 on the board and provides a powered only USB socket.
Each USB hub add on board for the MiSTer FPGA are checked under a microscope to ensure no solder bridges are present, the complete USB hub board is fully cleaned in an ultrasonic bath to remove any flux residue left over from assembly. Each USB hub board uses high quality branded components including KEMET and Samsung.

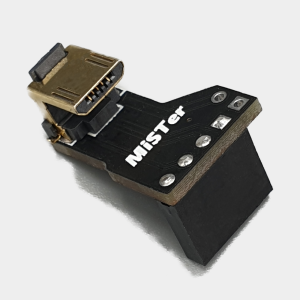

✅ Includes USB Hub Micro USB Bracket Connector

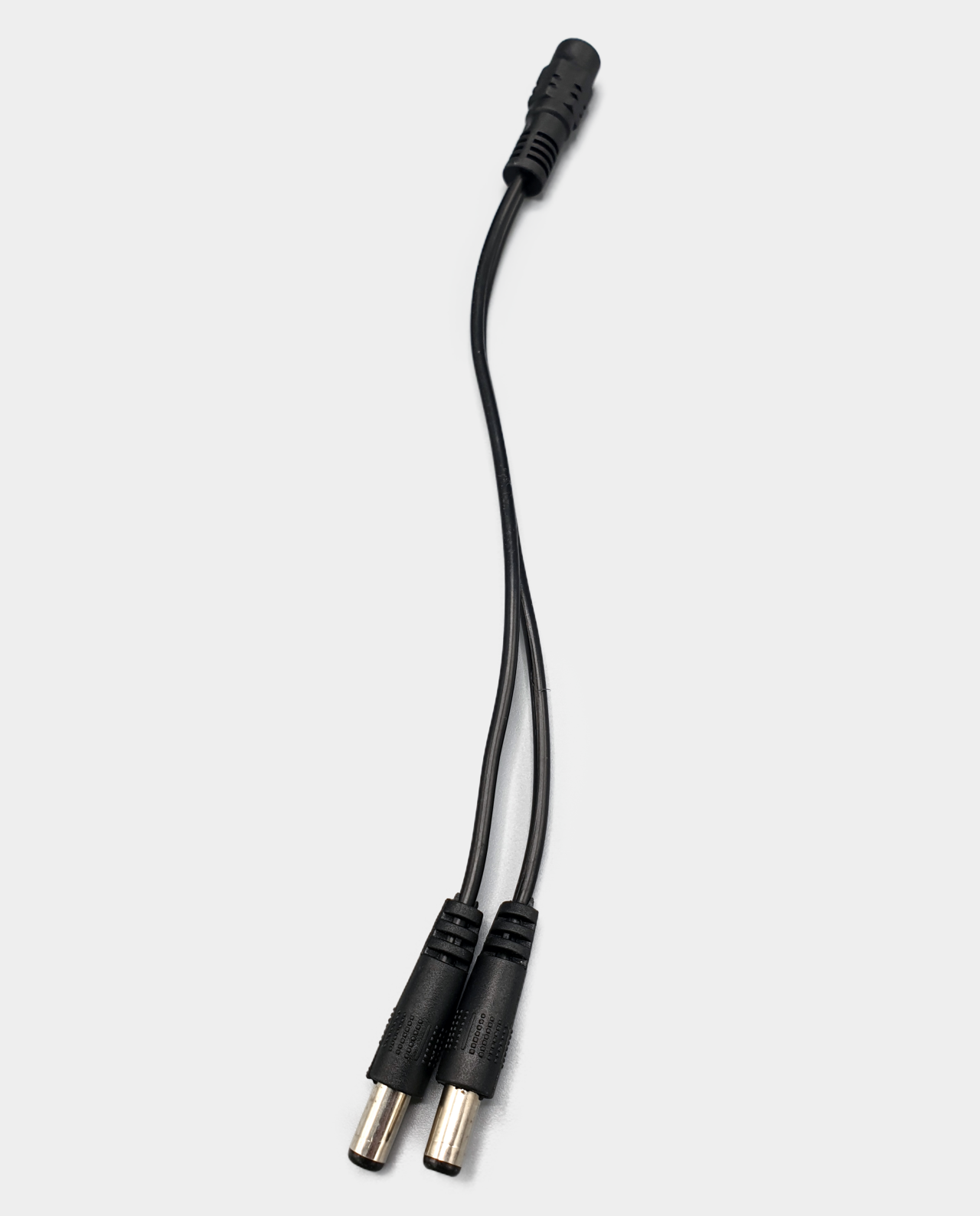

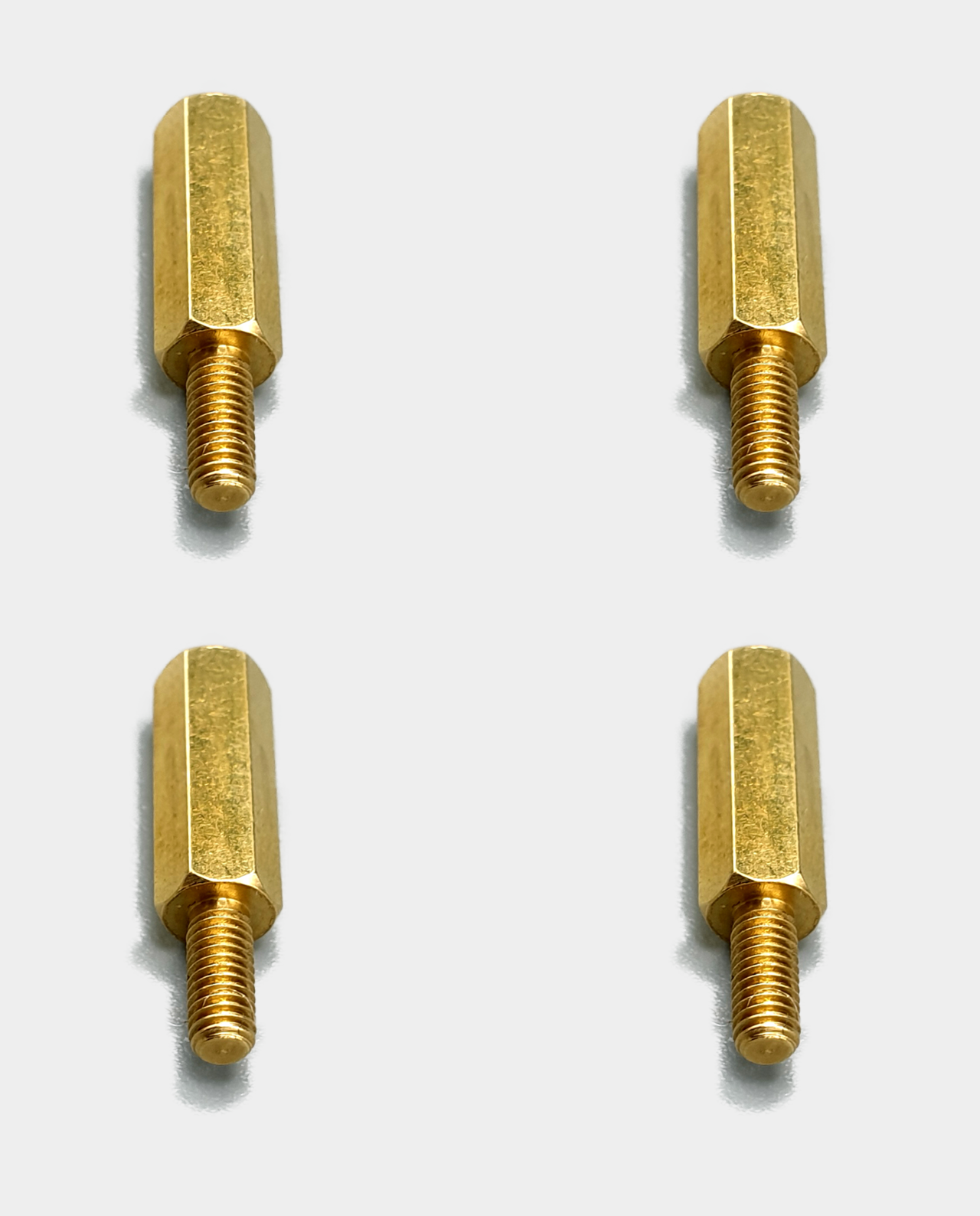

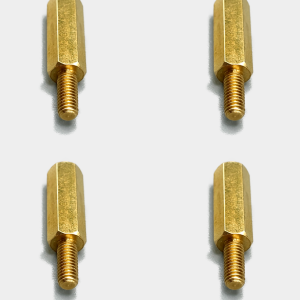

✅ Includes Power Splitter Lead & Brass Stand-offs
✅ Fully Assembled & Tested
USB Hub v2.1 Compatibility:
✅ Terasic DE10-Nano
❌ Retro Remake MiSTer Pi
❌ QMTECH Cyclone V
| Option1 | Option1 |
|---|
