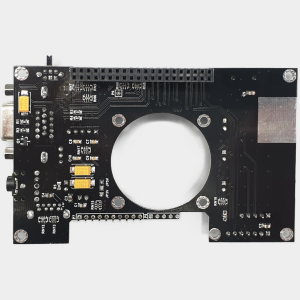

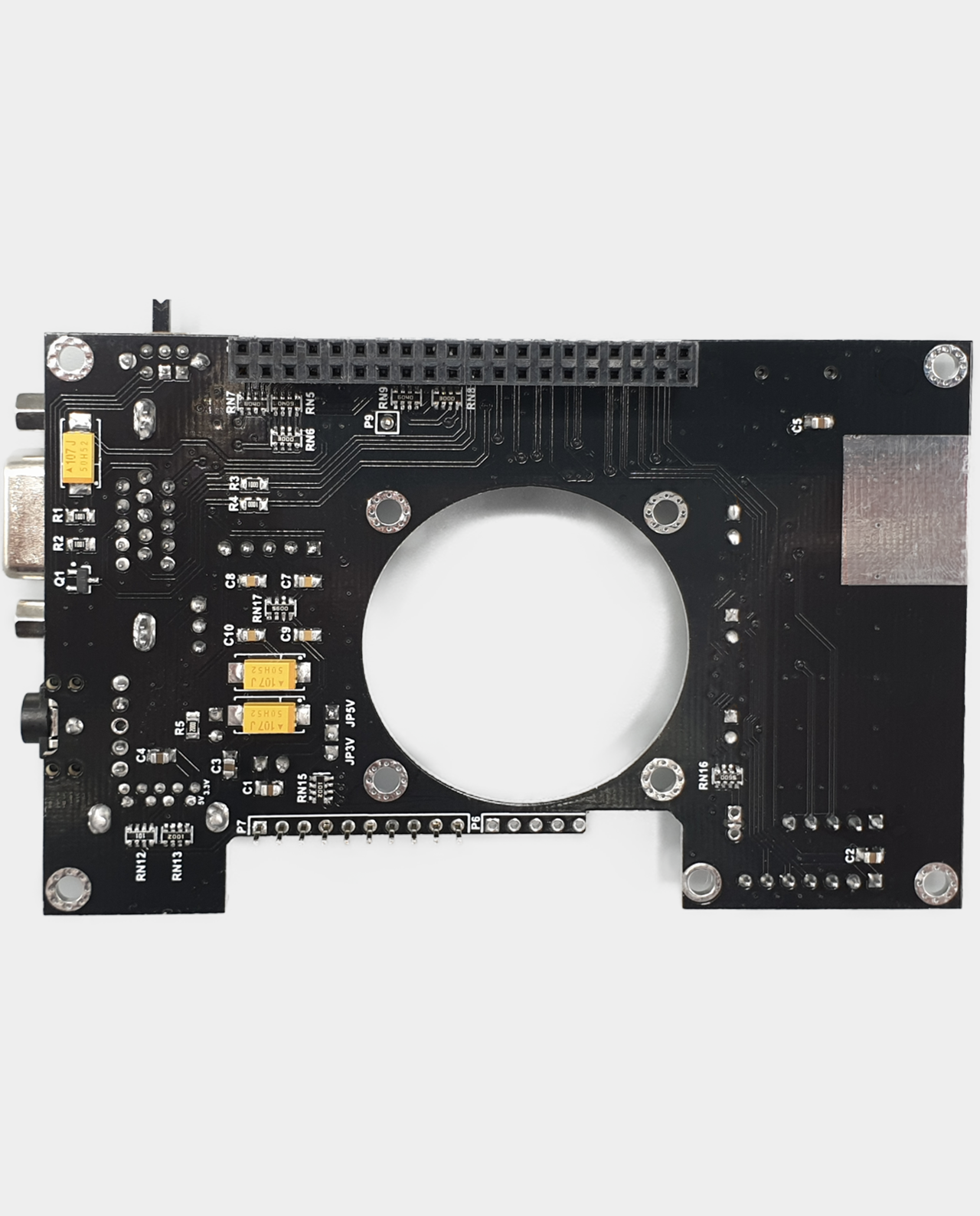

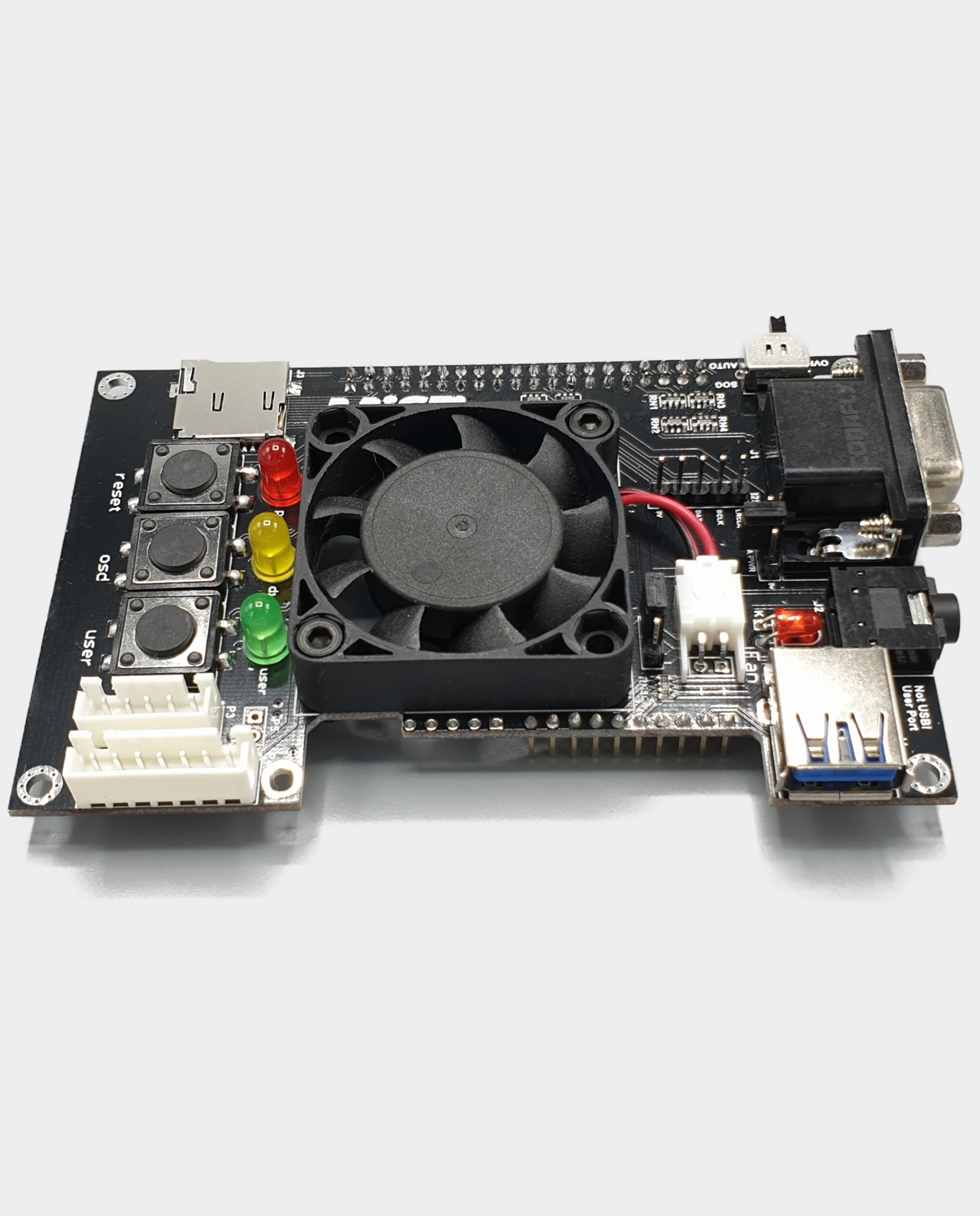

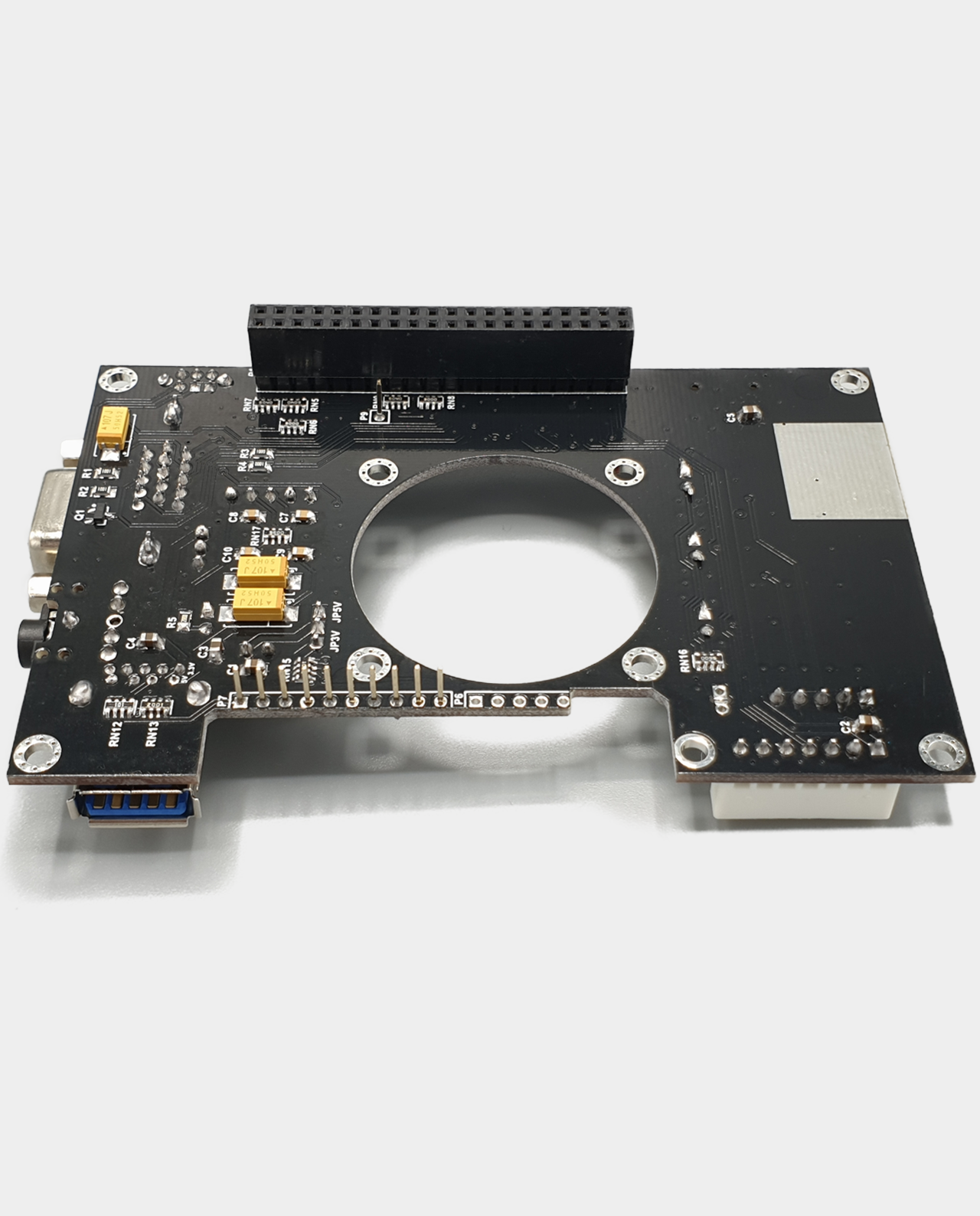

MiSTer Analog IO Board v6.1
$29.99
Analog IO board v6.1 for MiSTer with VGA, RGB and YPbPr output via DB15, 3.5mm analog and Mini-TOSLINK digital audio, and a second microSD slot.
Related guide: what you need for a first MiSTer FPGA build.
The MiSTer FPGA Analog IO board v6.1 includes the following useful features a VGA (DB15) connector allowing for the output of a VGA/RGB/YPbPr signal depending on the cable being used, a 3.5mm audio jack with Mini-TOSLINK providing analog audio output and digital audio output, a secondary microSD card slot the functionality depends upon the core being used, a fan speed control providing a 3.3 volt / 5 volt selector jumper, a status LED control jumper allowing switching on or off the built in LEDs, a Sync-on-Green switch, three status LEDs (red, yellow, green), three large push buttons providing system reset, on screen display menu and game reset, an expansion connector in the form of a USB 3.0 connector however this is not for standard USB devices.
The MiSTer I/O Board v6.1 adds one additional GPIO pin to the User IO port, providing support for the Sega Mega Drive / Genesis / Master System game pads using a SNAC board.
Once assembled each MiSTer FPGA IO board is inspected under a microscope to ensure no solder bridges are present, the completed version 6.1 IO board is fully cleaned in an ultrasonic bath to remove any flux residue left over from assembly, once clean the IO board is fully tested on a live MiSTer setup. Each IO board uses high quality branded components including Samsung Electro-Mechanics and Bourns Inc.
Configuration of the video output signal on the IO board is controlled via the MiSTer.ini file, more information on how to configure and download of the MiSTer.ini file see the MiSTer.ini configuration page.
For more information on analog video output compatibility see the MiSTer wiki.
✅ Official Addon Board For The MiSTer FPGA Project
✅ Includes Quiet Fan or Premium Noctua NF-A4x10 Fan
✅ VGA Connector (VGA / YPbPr / RGB) Video Output
✅ 3.5mm Audio Jack with Mini-TOSLINK
✅ 3 User Buttons & 3 Status LEDs
✅ Secondary MicroSD Slot
✅ Expansion Connector User IO
✅ Switchable Sync-On-Green (SOG)
✅ Headers For External Push Buttons & LEDs
✅ Fully Assembled & Tested
Analog IO Board v6.1 Compatibility:
✅ Terasic DE10-Nano
✅ Retro Remake MiSTer Pi
❌ QMTECH Cyclone V
| Fan Type: | Standard Fan, Noctua NF-A4x10, Fan Not Required |
|---|
Be the first to review “MiSTer Analog IO Board v6.1”
Related products
Expansion Boards

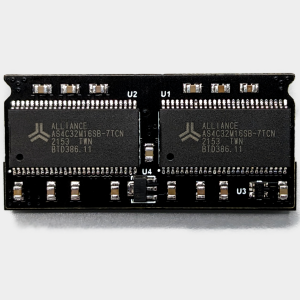

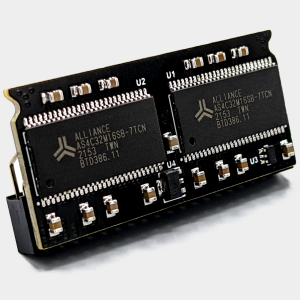

Extra Slim 128MB SDRAM module for MiSTer, essential for Neo Geo and other large cores that need low latency memory the DE10-Nano DDR3 cannot supply. Related guides: MiSTer SDRAM: 32MB vs 128MB and our MiSTer FPGA beginner's guide.
Expansion Boards

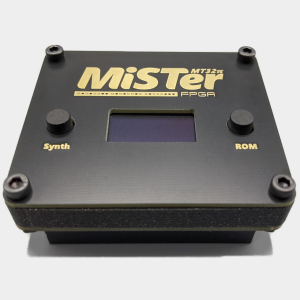

Official MiSTer endorsed mt32-pi HAT that links a Raspberry Pi directly to the MiSTer with no extra power, audio or MIDI cabling for plug and play MIDI.
Expansion Boards
Audio tape input board for MiSTer with a 3.5mm headphone jack that plugs into the DE10-Nano J15 ADC header, adding cassette loading to supported cores.
Expansion Boards
Seven port USB hub v2.1 for MiSTer, connecting neatly to the DE10-Nano through the supplied Micro USB bracket connector so you can add multiple peripherals. Related guides: SNAC vs BlisSTer vs USB controllers and our MiSTer FPGA beginner's guide.
Bliss-Box enabled SNAC board for MiSTer that accepts Bliss-Box controller cables through its HDMI socket, covering NES, SNES, Mega Drive and more. Related guide: how SNAC and Bliss-Box controllers compare.
Expansion Boards
Modular MiSTer IO board that works as Digital IO for dual SDRAM builds or adds an Analog AV module with VGA, RGB, YPbPr and analog audio output. Related guide: what you need for a first MiSTer FPGA build.

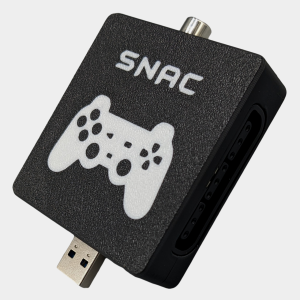

Stand-alone PSX SNAC adapter for the MiSTer PlayStation core with support for original controllers, rumble, light guns, NeGcon and Jogcon pads. Related guide: SNAC vs BlisSTer vs USB controllers on MiSTer.
Expansion Boards

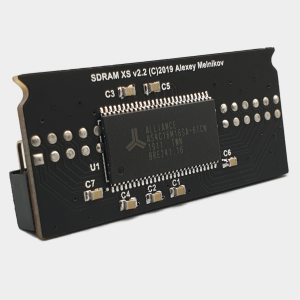

Extra Slim 32MB SDRAM board for MiSTer, providing the precise low latency memory timings demanded by cores such as Neo Geo. For 512KB+ core memory. Related guides: MiSTer SDRAM: 32MB vs 128MB and our MiSTer FPGA beginner's guide.
