MiSTer Heatsink DE10 Nano Cooling

The hybrid ARM + FPGA chip can get very hot when running certain MiSTer cores as such some passive cooling is required. The main heat source in the chip is the integrated dual-core ARM producing a constant heat regardless of the FPGA core use. The more complex MiSTer cores require tight timings and lowering chip temperatures helps with stability.

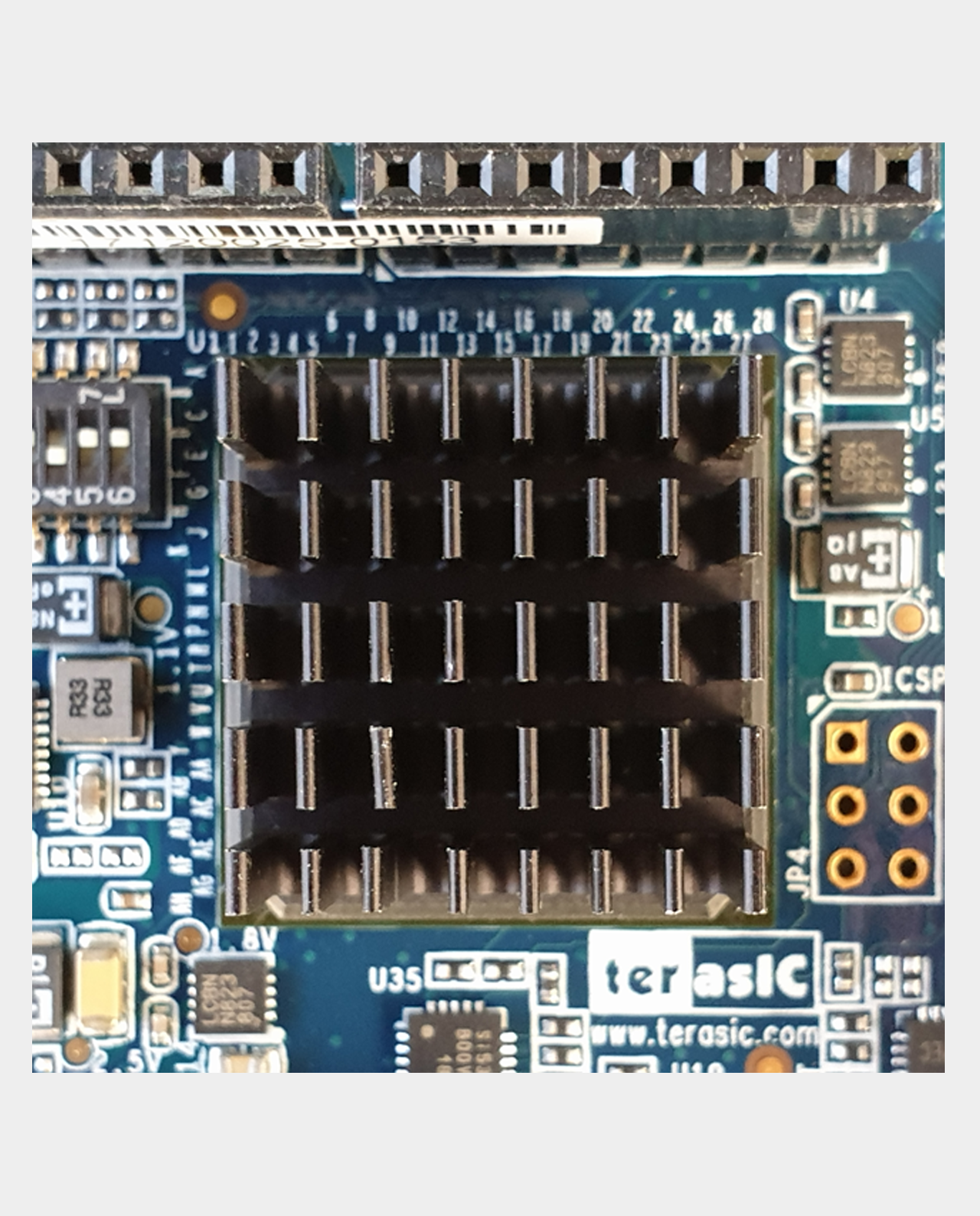

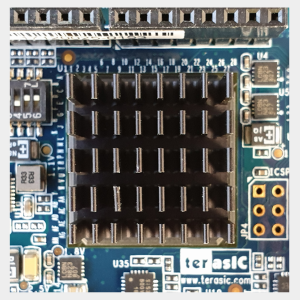

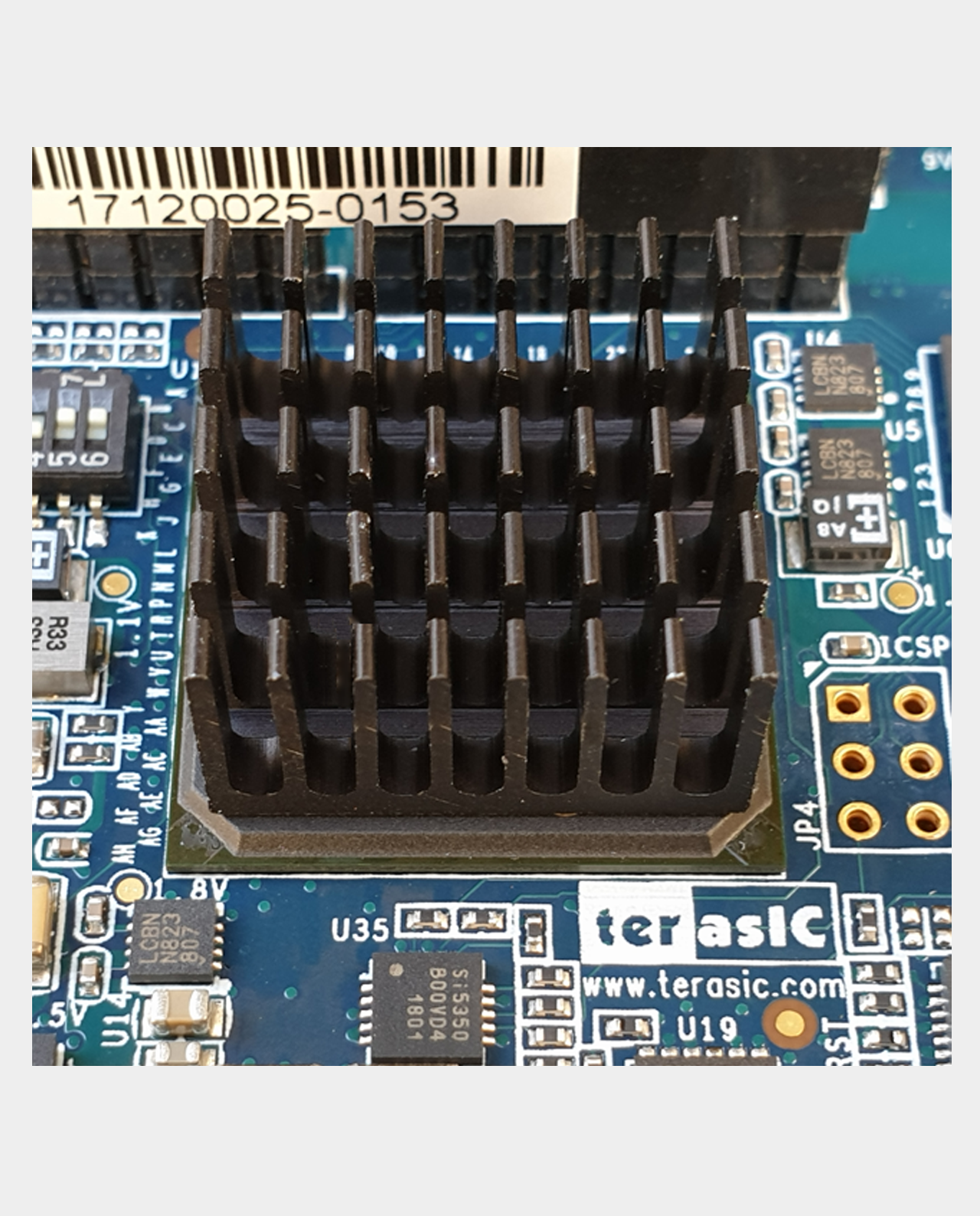

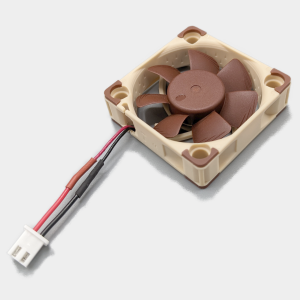

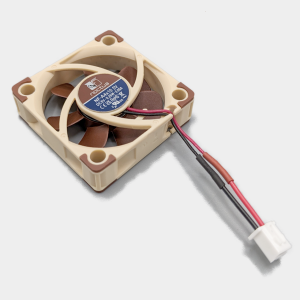

The solution is installation of a quality heat sink, just installing this heat sink adds much improved passive cooling for your MiSTer FPGA setup, however pair this with a MiSTer IO Board and a mounted fan and you will have the best active cooling solution possible.

✅ 3M 8810 Thermal Conductive Adhesive Applied
✅ Improve FPGA Passive Cooling
✅ MiSTer IO Board Compatible

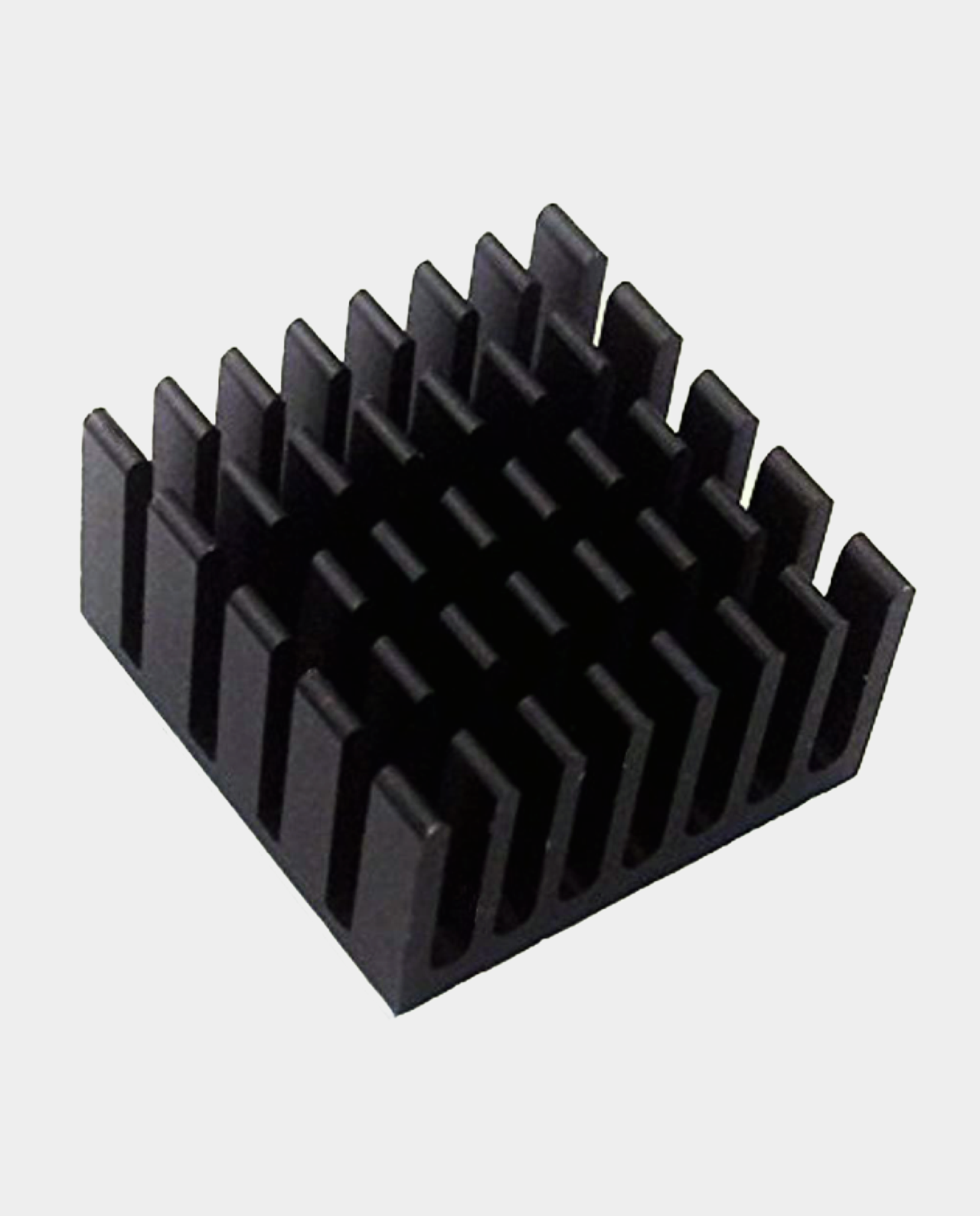

✅ Black Aluminium 6063-T5

MiSTer Heatsink Compatibility:
✅ Terasic DE10-Nano
✅ Retro Remake MiSTer Pi
✅ QMTECH Cyclone V
